Product Summary
-

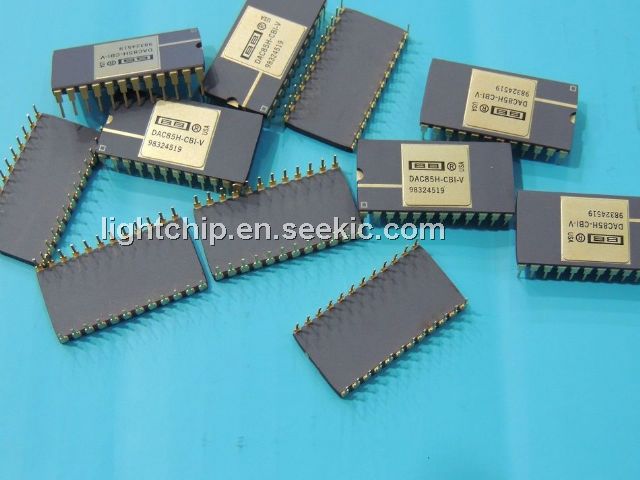

The DAC85H-CBI-V is a digital-to-analog converter. Its single-chip design includes the output amplifier and provides a highly stable reference capable of supplying up to 2.5mA to an external load without degradation of D/A performance. The DAC85H-CBI-V uses proven circuit techniques to provide accurate and reliable performance over temperature and power supply variations.
Parametrics
DAC85H-CBI-V absolute maxing ratings: (1)+Vcc to Common: 0V to+18V; (2)-Vcc to Common: 0V to -18V; (3)Digital Data Inputs to Common: -1V to+18V; (4)Reference Output to Common: ±Vcc; (5)Reference Input to Common: ±vcc; (6)Bipolar Offset to Common: ±vcc; (7)10V Range R to Common: ±voc; (8)20V Range R to Common: ±vcc; (9)External Voltage to DAC Output: -5V to +5V; (10)Max Junction Temperature: J65℃; (11)Lead Temperature, Soldering: 300℃, 10s; (12)Thermal Resistance, 6>JA: 65℃/W.
Features
DAC85H-CBI-V features: (1)industry standard pinout; (2)low power dissipation: 345mw; (3)full ±10v swin6 with vcc = ±12vdc; (4)digital inputs are ttl- and cmos-compatible; (5)guaranteed specifications with ±12v and ±15v supplies; (6)single-chip design; (7)±i/2lsb maximum nonlinearity. -55℃ to +125℃; (8)guaranteed monotonicity, -55℃ to +125℃; (9)package: hermetic side-brazed ceramic dip; (10)settling time: 4//s max to ±0.01% of full scale
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
DAC85H-CBI-V |
Texas Instruments |
IC 12-BIT V-OUT D/A 24-DIP |
Data Sheet |
Negotiable |
|
|||||||
