Product Summary
-

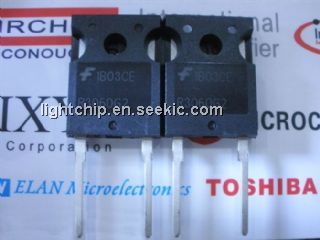

The RHRG3060 is a hyperfast diode with soft recovery characteristics (trr< 40ns). The RHRG3060 has half the recovery time of ultrafast diodes and are of silicon nitride passivated ion-implanted epitaxial planar construction. The device is intended for use as freewheeling/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. The applications of the RHRG3060 include Switching Power Supplies, Power Switching Circuits, General Purpose.
Parametrics
RHRG3060 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 600 V; (2)Working Peak Reverse Voltage, VRWM: 600 V; (3)DC Blocking Voltage, VR: 600 V; (4)Average Rectified Forward Current, IF(AV)(TC= 120℃): 30 A; (5)Repetitive Peak Surge Current, (Square Wave, 20kHz), IFRM: 70 A; (6)Nonrepetitive Peak Surge Current(Halfwave, 1 Phase, 60Hz), IFSM: 325 A; (7)Maximum Power Dissipation, PD: 125 W; (8)Avalanche Energy (See Figures 10 and 11), EAVL: 20 mJ; (9)Operating and Storage Temperature, TSTG, TJ: -65 to 175℃.
Features
RHRG3060 features: (1)Hyperfast with Soft Recovery: <40ns; (2)Operating Temperature: 175℃; (3)Reverse Voltage Up To: 600V; (4)Avalanche Energy Rated; (5)Planar Construction.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RHRG3060 |
Fairchild Semiconductor |
Rectifiers 30A 600V |
Data Sheet |
|
|
||||||||||||
 |
RHRG3060_Q |
Fairchild Semiconductor |
Rectifiers 30A 600V |
Data Sheet |
Negotiable |
|
||||||||||||
|
RHRG3060CC |
Fairchild Semiconductor |
Rectifiers 30A 600V |
Data Sheet |
|
|
||||||||||||
|
RHRG3060CC_Q |
Fairchild Semiconductor |
Rectifiers 30A 600V |
Data Sheet |
Negotiable |
|
||||||||||||
