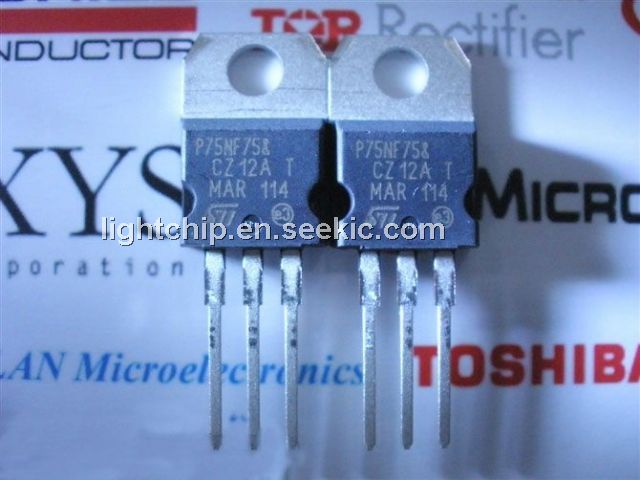

Product Summary
-
The STP75NF75 is the N-channel 75V power MOSFET which realized with STMicroelectronics unique STripFET process. It has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications. The STP75NF75 is also intended for any applications with low gate drive requirements.
Parametrics
STP75NF75 absolute maximum ratings: (1)Drain-source voltage (VGS = 0): 75 V; (2)Drain-gate voltage (RGS = 20KΩ): 75 V; (3)Gate-source voltage: ± 20 V; (4)Drain current (continuous) at TC = 25℃: 80 A; (5)Drain current (continuous) at TC=100℃: 70 A; (6)Drain current (pulsed): 320 A; (7)Total dissipation at TC = 25℃: 300, 45 W; (8)Operating junction temperature: -55 to 175℃; (9)Storage temperature: -55 to 175 ℃.
Features
STP75NF75 features: (1)Exceptional dv/dt capability; (2)100% avalanche tested; (3)Current limited by package; (4)Switching application.

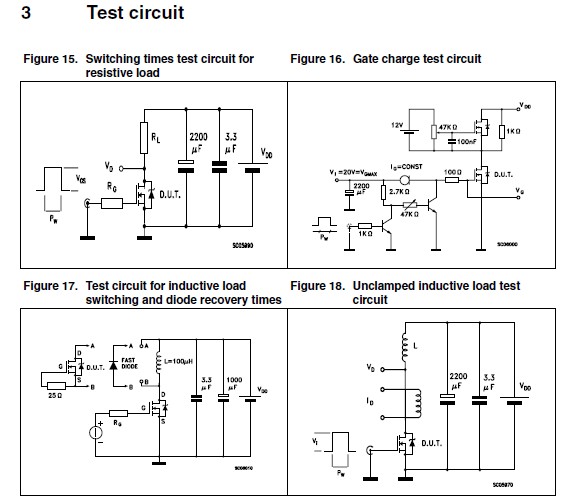

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STP75NF75 |
STMicroelectronics |
MOSFET N-Ch 75 Volt 80 Amp |
Data Sheet |
|
|
||||||||||||
|
STP75NF75FP |
STMicroelectronics |
MOSFET N-Ch, 75V-0.0095ohms 80A |
Data Sheet |
|
|
||||||||||||
 |
STP75NF75L |
STMicroelectronics |
MOSFET N-Ch 75 Volt 75 Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
STP75NF75-M |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
