Product Summary
-
The mc7915ctg fixed output negative voltage regulator is intended as complements to the popular MC7800 series devices. The negative regulator is available in the same seven-voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the mc7915ctg. Available in fixed output voltage options from -5.0 V to -24 V, the regulator mc7915ctg employs current limiting, thermal shutdown, and safe-area compensation making it remarkably rugged under most operating conditions. With adequate heatsinking the device can deliver output currents in excess of 1.0 A.
Parametrics
mc7915ctg maximum ratings: (1)Input Voltage (.5.0 V ≥ VO ≥ .18 V), VI: -35 Vdc; (2)Input Voltage (24 V), -40 Vdc; (3)Power Dissipation: Case 221A, TA = +25℃, PD Internally Limited W; Thermal Resistance, Junction.to.Ambient θJA 65 ℃/W; Thermal Resistance, Junction.to.Case θJC 5.0 ℃/W; (4)Case 936 (D2PAK), TA = +25℃, PD Internally Limited W; Thermal Resistance, Junction.to.Ambient θJA 70 ℃/W; Thermal Resistance, Junction-to-Case θJC 5.0 ℃/W; (5)Storage Junction Temperature Range, Tstg: -65 to +150 ℃; (6)Junction Temperature, TJ: +150 ℃.
Features
mc7915ctg features: (1)No External Components Required; (2)Internal Thermal Overload Protection; (3)Internal Short Circuit Current Limiting; (4)Output Transistor Safe-Area Compensation; (5)Available in 2% Voltage Tolerance (See Ordering Information); (6)Pb-Free Package May be Available. The G-Suffix Denotes a Pb-Free Lead Finish.

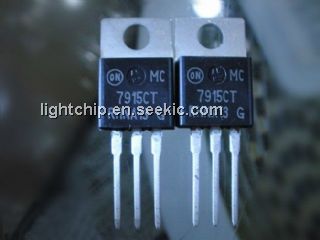

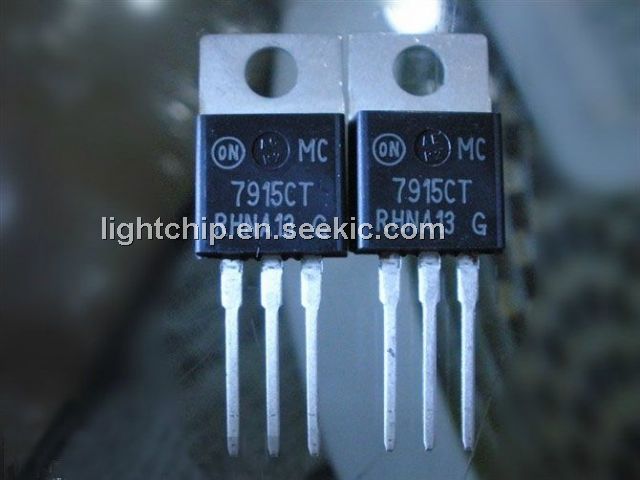

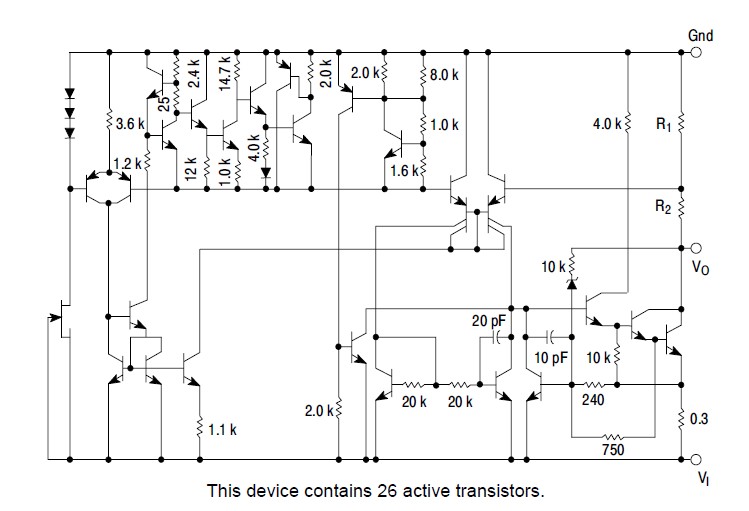

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC7915CT |
Fairchild Semiconductor |
Linear Regulators - Standard 1A Neg Volt Reg |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7915CT_Q |
Fairchild Semiconductor |
Linear Regulators - Standard 1A Neg Volt Reg |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7915CTG |
ON Semiconductor |
Linear Regulators - Standard 15V 1A Negative |
Data Sheet |
|
|
||||||||||||
|
MC7915CTBU |
Fairchild Semiconductor |
Linear Regulators - Standard |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC7915CT-BP |
|
IC REG LDO -15V 1.5A TO220 |
Data Sheet |
Negotiable |
|
||||||||||||
