Product Summary
-

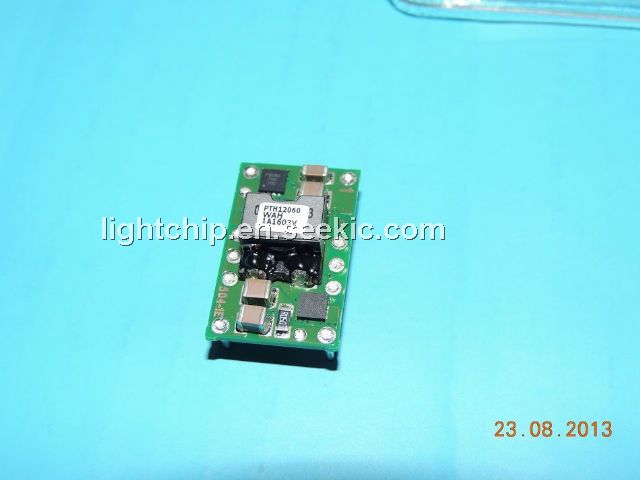

The PTH12060WAH is a non-isolated power module, and part of a new class of complete dc/dc converters from Texas Instruments. The PTH12060WAH is small in size, and is an alternative for applications requiring up to 10 A of load current. The small footprint, (1 inch × 0.62 inch) and industry leading features makes the PTH12060WAH suitable for space conscious digital systems that incorporate multiple processors. The applications of the device include Complex Digital Systems.
Parametrics
PTH12060WAH absolute maximum ratings: (1)VI, Input voltage: – 0.3 V to VI +0.3 V; (2)TA, Operating temperature: – 40 to 85℃; (3)Twave, wave solder temperature: 260℃; (4)Treflow, solder reflow temperature: 235℃; (5)Tstg, storage temperature: -55 to 125℃; (6)mechanical shock: 500G; (7)mechanical vibration: 20G; (8)weight: 5 grams.
Features
PTH12060WAH features: (1)Up to 10-A Output Current; (2)12-V Input Voltage; (3)Wide-Output Voltage Adjust (1.2 V to 5.5 V/(0.8 V to 1.8 V); (4)Efficiencies up to 95%; (5)225 W/in Power Density; (6)Output Voltage Sense; (7)Margin Up/Down Controls; (8)Undervoltage Lockout; (9)Auto-Track Sequencing; (10)Pre-Bias Start-up Capability using On/Off Inhibit; (11)Output Overcurrent Protection (Non-latching, Auto-Reset); (12)Operating Temperature: – 40 to 85℃; (13)Safety Agency Approvals: UL/IEC/CSA C22.2 60950-1; (14)Point-of-Load Alliance ( POLA) Compatible.

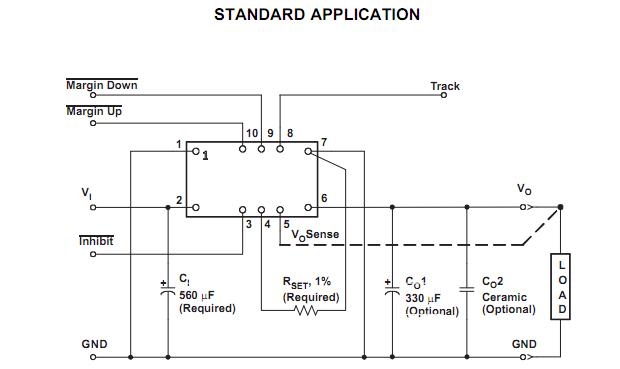

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PTH12060WAH |
Emerson / Astec Power |
Power Management Modules 55W 1.2V-5.5V 10A |
Data Sheet |
|
|
||||||||||||
