Product Summary
-

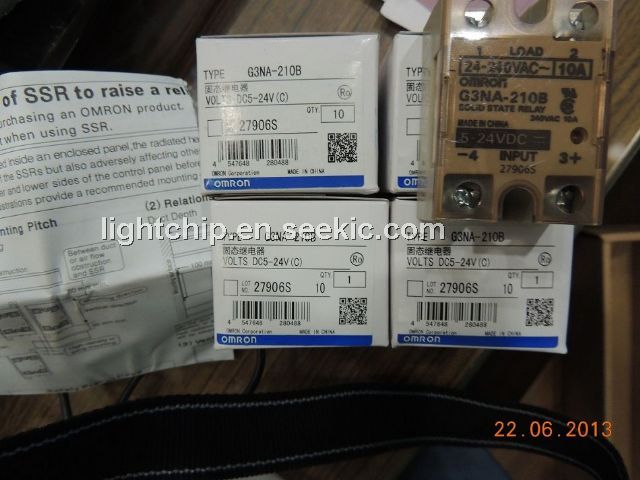

The G3NA-210B is a Solid State Relay.
Parametrics
G3NA-210B absolute maximum ratings: (1)Operate time, DC input: 1/2 of load power source cycle + 1 ms max; AC input: 1 1/2 of load power source cycle + 1 ms max; (2)Release time, DC input: 1/2 of load power source cycle + 1 ms max; AC input: 1 1/2 of load power source cycle + 1 ms max; (3)Output ON voltage drop: 1.6 V (RMS) max; (4)Leakage current: 5 mA max. at 100 VAC; 10 mA max. at 200 VAC; (5)Insulation resistance: 100 MΩ min at 500 VDC; (6)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 minute; (7)Vibration Malfunction: 10 to 55 Hz, 1.5 mm double amplitude; (8)Shock Malfunction: 1,000 m/s2 (approx. 100G); (9)Ambient temperature Operating: -30 to 80℃; Storage: -30 to 100℃.
Features
G3NA-210B features: (1)All models feature the same compact dimensions to provide a uniform mounting pitch; (2)Built-in varistor effectively absorbs external surges; (3)Operation indicator (red LED) enables monitoring operation; (4)Protective cover for greater safety; (5)All models approved by UL/CSA; TUV approved models available; (6)Wide range of outputs: 5 to 40 A, up to 480 VAC/200 VDC; (7)Optional Y92B heat sinks allow relays to reach maximum rated loads; (8)25-amp version ideal for many industrial control applications.
Diagrams
G3NA-210B
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G3NA-210B-AC100-120 |
Omron Industrial |
Solid State Relays 100-120VA/240VAC 10A |
Data Sheet |
|
|
||||||||||||||||||
|
G3NA-210B-AC200-240 |
Omron Industrial |
Solid State Relays 200-240VA/240VAC 10A |
Data Sheet |
|
|
||||||||||||||||||
|
G3NA-210B-DC5-24 |
Omron Industrial |
Solid State Relays 5-24VDC/240VAC 10A |
Data Sheet |
|
|
||||||||||||||||||
|
G3NA-210B-UTU DC5-24 |
Omron Industrial |
Solid State Relays SS Relay 10 A 5 to 24 VDC |
Data Sheet |
|
|
||||||||||||||||||
|
G3NA-210BL DC5-24 |
Omron Industrial |
Solid State Relays Solid State Relay |
Data Sheet |
|
|
||||||||||||||||||
|
G3NA-210B-UTU AC200-240 |
Omron Industrial |
Solid State Relays Solid State Relay |
Data Sheet |
|
|
||||||||||||||||||
 |
G3NA-210B-UTU-DC5-24 |
|
RELAY SSR 10A ZERO 5-24VDC IN |
Data Sheet |
|
|
||||||||||||||||||
