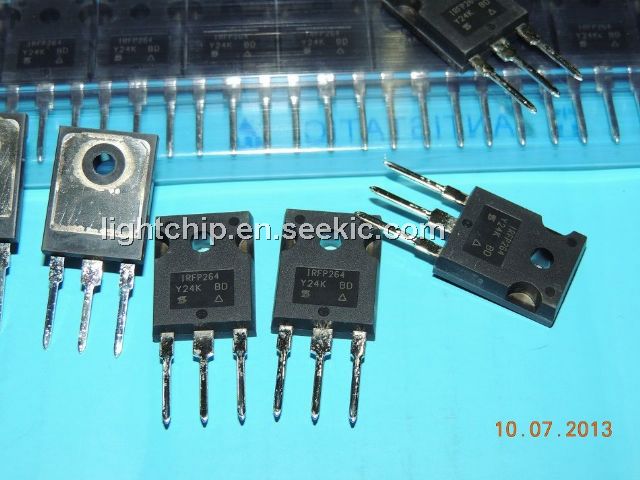

IRFP264PBF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~3.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	3.40 / Piece
10000 ~ 20000 :	3.20 / Piece

PartNumber:: IRFP264PBF

Brand:: International Rectifier - IR | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. ALLEN's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-12-11

From Other Seller

Part Number:IRFP264PBF
US $3.20 - 3.40
Quantity:

piece

Product Summary

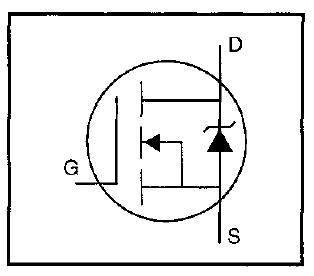

The IRFP264 HEXFET power MOSFET from international rectifier provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package of IRFP264 is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. The IRFP264 also provides greater creepage distance between pins to meet the requirements of most safety specifications.

Parametrics

IRFP264 absolute maximum ratings: (1)ID@TC=25℃, continuous drain current,VGS @ 10V: 38 A; (2)ID@TC=100℃, continuous drain current,VGS @ 10V: 24 A; (3)IDM, pulsed drain current: 150 A; (4)PD@TC=25℃, power dissipation: 280 W; (5)linear dersting factor: 2.2 W/℃; (6)gate-to-source voltage: ±20 V; (7)single pulse avalanche energy: 1000 mJ; (8)avalanche current: 38 A; (9)repetitive avalanche energy: 28 mJ; (10)peak diode recovery dv/dt: 4.8 V/ns; (11)junction and storage temperature range: -55 to +150 ℃; (12)soldering temperature, for 10 seconds: 300 ℃ (1.6mm from case).

Features

IRFP264 features: (1)dynamic dv/dt rating; (2)repetitive avalanche rated; (3)isolated central mounting hole; (4)fast switching; (5)east of paralleling; (6)simple drive requirements.
