Product Summary

  • The CY7C425-25DMB is a 1K x 9 Asynchronous FIFO offered in 600-mil wide and 300-mil wide packages. They are, respec-
    tively, 256, 512, 1,024, 2,048, and 4,096 words by 9-bits wide. The CY7C425-25DMB is organized such that the data is read in the same sequential order that it was written. Full and Empty flags are provided to prevent overrun and underrun. Three additional pins are also provided to facilitate unlimited expansion in width, depth, or both.

Parametrics

CY7C425-25DMB absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with; (3)Power Applied: -55℃ to +125℃; (4)Supply Voltage to Ground Potential: -0.5V to +7.0V; (5)DC Voltage Applied to Outputs in High Z State: -0.5V to +7.0V; (6)DC Input Voltage: -0.5V to +7.0V; (7)Power Dissipation: 1.0W; (8)Output Current, into Outputs (LOW): 20 mA; (9)Static Discharge Voltage: >2000V (per MIL–STD–883, Method 3015); (10)Latch-Up Current: >200 mA.

Features

CY7C425-25DMB features: (1)Asynchronous first-in first-out (FIFO) buffer memories; (2)1K x 9 (CY7C425); (3)Dual-ported RAM cell; (4)High-speed 50.0-MHz read/write independent of depth/width; (5)Low operating power: ICC = 35 mA; (6)Empty and Full flags (Half Full flag in standalone); (7)TTL compatible; (8)Retransmit in standalone; (9)Expandable in width; (10)PLCC, 7x7 TQFP, SOJ, 300-mil and 600-mil DIP ; (11)Pin compatible and functionally equivalent to IDT7200, IDT7201, IDT7202, IDT7203, IDT7204, AM7200, AM7201, AM7202, AM7203, and AM7204.

Diagrams

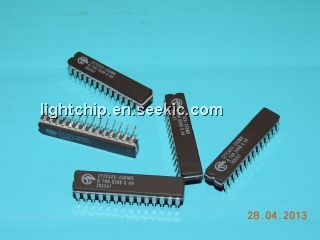

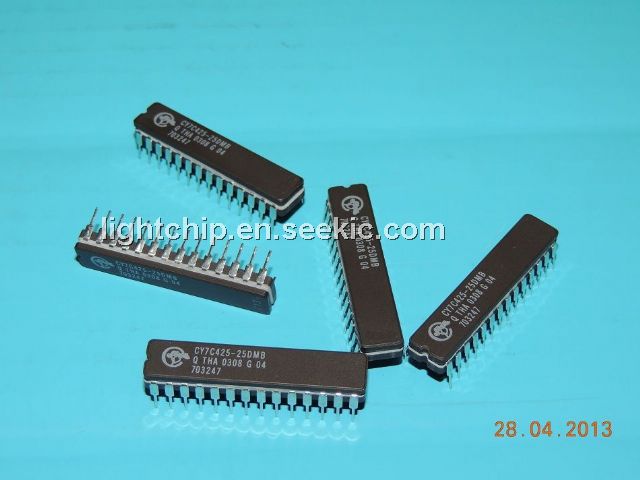

CY7C425-25DMB
