Product Summary

  • The AD603ARZ is a low noise, voltage-controlled amplifier for use in RF and IF AGC systems. It provides accurate, pin selectable gains of –11 dB to +31 dB with a bandwidth of 90 MHz or +9 dB to +51 dB with a bandwidth of 9 MHz. Any intermediate gain range may be arranged using one external resistor. The AD603ARZ can drive a load impedance as low as 100 W with low distortion. For a 500 W load in shunt with 5 pF, the total harmonic distortion for a ±1 V sinusoidal output at 10 MHz is typically -60 dBc. The applications of the AD603ARZ include RF/IF AGC Amplifier, Video Gain Control, A/D Range Extension, Signal Measurement.

Parametrics

AD603ARZ absolute maximum ratings: (1)Supply Voltage ±VS: ±7.5 V; (2)Internal Voltage VINP (Pin 3): ±2 V Continuous; ±VS for 10 ms; GPOS, GNEG (Pins 1, 2): ±VS; (3)Internal Power Dissipation: 400 mW; (4)Operating Temperature Range: –40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD603ARZ features: (1)Linear in dB Gain Control; (2)Pin Programmable Gain Ranges: -11 dB to +31 dB with 90 MHz Bandwidth; +9 dB to +51 dB with 9 MHz Bandwidth; (3)Any Intermediate Range, e.g., -1 dB to +41 dB with 30 MHz Bandwidth; (4)Bandwidth Independent of Variable Gain; (5)1.3 nV √Hz￣ Input Noise Spectral Density; (6)±0.5 dB Typical Gain Accuracy; (7)MIL-STD-883 Compliant and DESC Versions Available.

Diagrams

AD603ARZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD603ARZ
AD603ARZ

IC AMP VGA 90MHZ LN 50MA 8SOIC
Data Sheet
0-1: $6.38
1-10: $5.80
10-100: $4.93
100-250: $4.49
250-500: $4.20
500-1000: $3.87
AD603ARZ-REEL
AD603ARZ-REEL

IC AMP VGA 90MHZ LN 50MA 8SOIC
Data Sheet
0-2500: $3.87

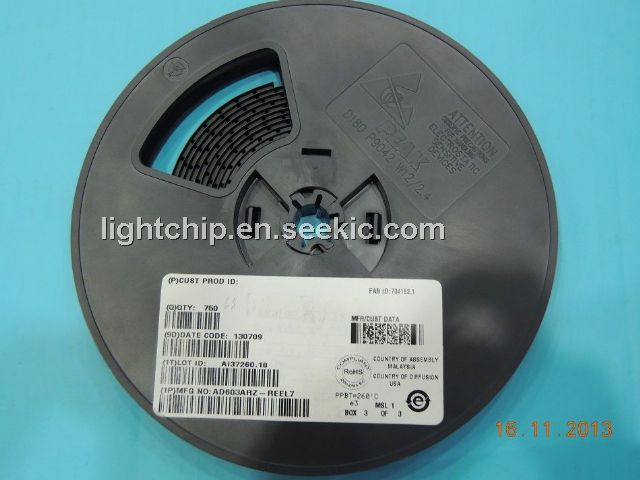

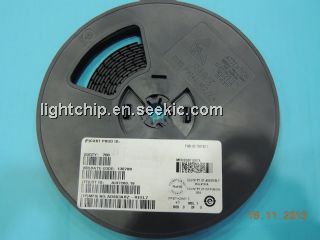

AD603ARZ-REEL7
AD603ARZ-REEL7

IC AMP VGA 90MHZ LN 50MA 8SOIC
Data Sheet
0-750: $4.00
