Product Summary
The DXP18BN5014TL is a Microchip Transformer (Balun Transformer) for Digital TV Tuners.
Parametrics
Absolute maximum ratings: (1)Freq.Range: 50 to 870 MHz; (2)Unbalanced Impedance: 50 ohm; (3)Balanced Impedance: 200 ohm; (4)Insertion Loss: 1.5 dB max; (5)CMRR: 25 dB min.
Features
Features: (1)Greatly reduced mounting space (compared to conventional balun transformers), enabling far more compact, slimmer mobile devices to be fitted with TV tuners; (2)The DXW21BN Series is a wire wound type microchip transformer of size 2.0 x 1.2 x 1.2 mm (1:1 balun); (3)The DXP18BN Series is a film type microchip transformer featuring an impedance conversion function, of size 1.6 x 0.8 x 0.45 mm (1:4 balun); (4)Low insertion loss and high output balance over a wide frequency band; (5)Compatible with reflow soldering for surface mounting; (6)Totally free of all RoHS-regulated substances.

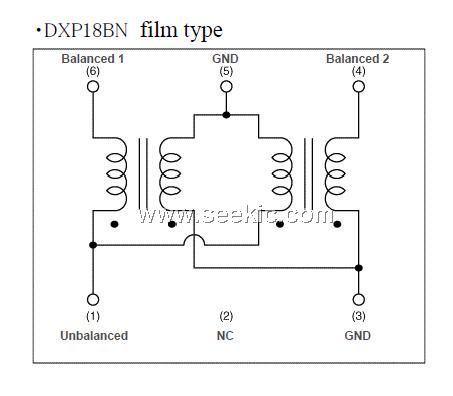

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

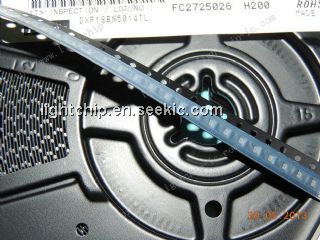

 DXP18BN5014TL |
Murata |
Transformers Audio & Signal 0603 BALUN FILM TYPE INDUCTOR |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
DXP18BN5014HL |
Murata |
Transformers Audio & Signal 0603 50ohm Balun |
Data Sheet |
|
|
||||||||||||
|
DXP18BN5014TL |
Murata |
Transformers Audio & Signal 0603 BALUN FILM TYPE INDUCTOR |
Data Sheet |
|
|
||||||||||||
|
DXP18BN5016DL |
Murata |
Transformers Audio & Signal 300ohm 20dBm Chip Transformer |
Data Sheet |
|
|
||||||||||||
|
DXP18CN7510TL |
Murata |
Transformers Audio & Signal 0603 75ohm 10dB Coupler |
Data Sheet |
|
|
||||||||||||
|
DXP18CN7515TL |
Murata |
Transformers Audio & Signal 0603 75ohm 15dB Coupler |
Data Sheet |
|
|
||||||||||||
|
DXP18BN7514TL |
Murata |
Transformers Audio & Signal 0603 75ohm Balun |
Data Sheet |
|
|
||||||||||||
