Product Summary
-

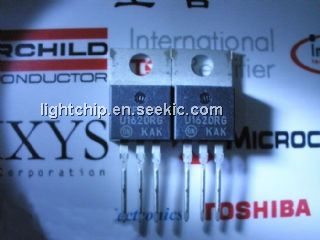

The MUR1620CTG is a SWITCHMODE Power Rectifier. The MUR1620CTG is designed for use in switching power supplies, inverters and as free wheeling diode.
Parametrics
MUR1620CTG absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 200V; Working Peak Reverse Voltage, VRWM: 200V; DC Blocking Voltage, VR: 200V; (2)Average Rectified Output Current, (Rated VR), per leg, IF(AV): 8A; Total Device, IF(AV): 16A; (3)Peak Rectified Forward Current, Per Diode Leg (Rated VR, Square Wave, 20 kHz), TC = 150℃, IFM: 16A; (4)Nonrepetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60KHz), IFSM: 100A; (5)Operating Junction Temperature and Storage Temperature Range, TJ, Tstg: -65 to +175℃.
Features
MUR1620CTG features: (1)Ultrafast 35 and 60 Nanosecond Recovery Times; (2)175℃ Operating Junction Temperature; (3)Popular TO-220 Package; (4)Epoxy Meets UL 94 V-0 @ 0.125 in; (5)High Temperature Glass Passivated Junction; (6)High Voltage Capability to 600 V; (7)Low Leakage Specified @ 150℃ Case Temperature; (8)Current Derating @ Both Case and Ambient Temperatures; (9)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MUR1620CTG |
ON Semiconductor |
Rectifiers 200V 16A UltraFast |
Data Sheet |
|
|
||||||||||||
